25.4. Adding a predefined table and chart to project manager



           The user may add any type of table. There are a variety of predefined tables, all of which are the same as in the summary window.

           To add a table, simply click right mouse button on the project manager page, and choose the drop down menu option “Predefined table“. This will bring up a menu in which every summary table can be chosen.





           Choosing one adds the table instantly or asks the user to choose the information displayed in it. Once the table is added, the user may customize the layout by double-clicking on the table element and rearranging the desired columns or rows.

           There are 3 types of charts that may be added to the project management page: breaker, motor dynamic, and harmonics. To add one, simply click right mouse button on the project management page and choose the chart menu item from the drop-down menu.

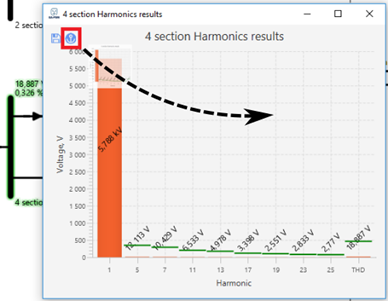

           Furthermore, there are an even more convenient way to add a chart to the project manager. Hover over an element on the scheme and wait for the chart to appear. Then hold button Ctrl and drag the mouse over to the page area. Releasing the mouse will result in the chart appearing on the manager page. The same can be done by dragging the anchor icon on a chart that is displayed on a chart.





           If a breaker chart was chosen, the user will be prompted to choose which breakers should be taken into consideration when forming a chart. Please note that harmonics and motor dynamics calculations should be made before adding the charts to the page.

           Note: it is possible to add a chart by holding CTRL and dragging an element onto the project manager page.
