29.7. Moving texts and changing fonts in the scheme

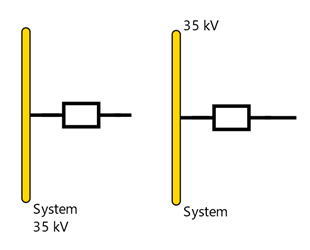

The positioning of all texts in the scheme can be customized. The new version of EA-PSM allow to freely change individual texts. Text position (offsetting) can be global or local as described in following chapters.

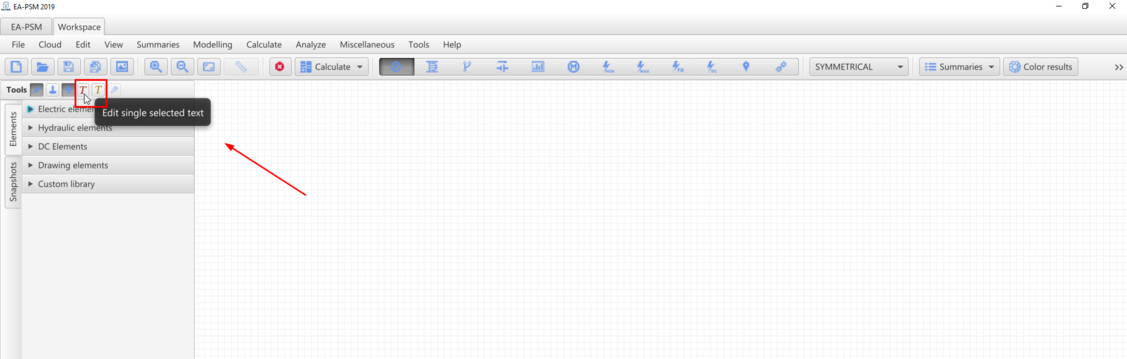

In order to move and edit texts user should turn enable text moving buttons at the tool box as depicted below.
Global text offsetting
Global text offsetting is moving the specific text of all elements in the scheme and will be visible in other schemes. It is saved locally like settings. User can move texts in such way when text moving button is enabled (button can be enabled by clicking on it or by pressing Ctrl+Shift+Alt) and drag texts with the mouse. In this mode hovered texts will be highlighted orange when hovered. Global offsets can be reset in the Setting window in Display → Texts → Reset global text positions.
Local text offsetting
Local text offsetting is moving the specific text of the specific element and affects only that one element. These offsets are saved in the scheme file and will be visible in other computers. User can move texts in such way when text moving button is enabled (button can be enabled by clicking on it or by pressing Ctrl+Shift) and drag texts with the mouse. In this mode, text hovered text will be highlighted red. Line split marker text does not support local offsetting. Local offsets can be reset by clicking View → Reset local text positions.
Changing fonts

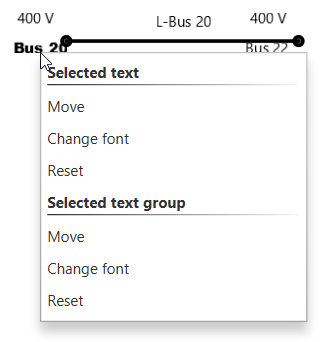

If or buttons are enabled, user can right click on the text and select to change font for this single text or for the texts group (this way, font changes for all the texts for the same elements).
Copying element text parameters

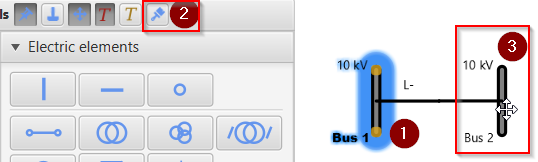

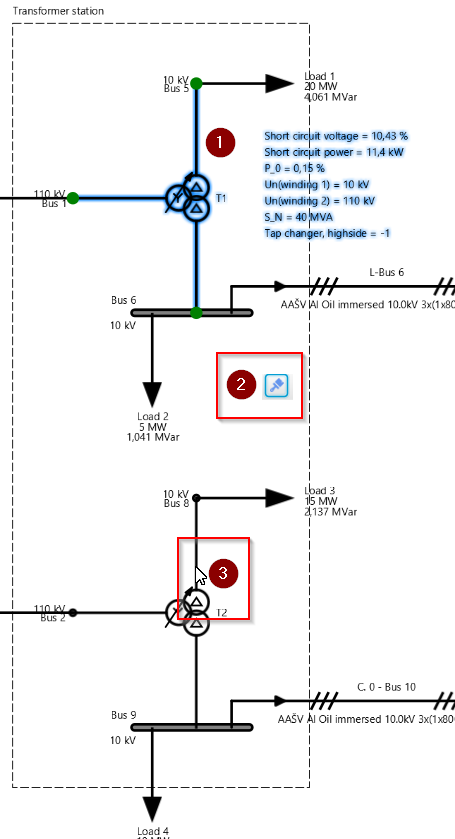

In order to copy the parameters of element text (showed properties, its font and position) to other the same type element, user should select the element which properties user want to copy, select icon from the Top tools menu and then right click on the element that user would like to paste:

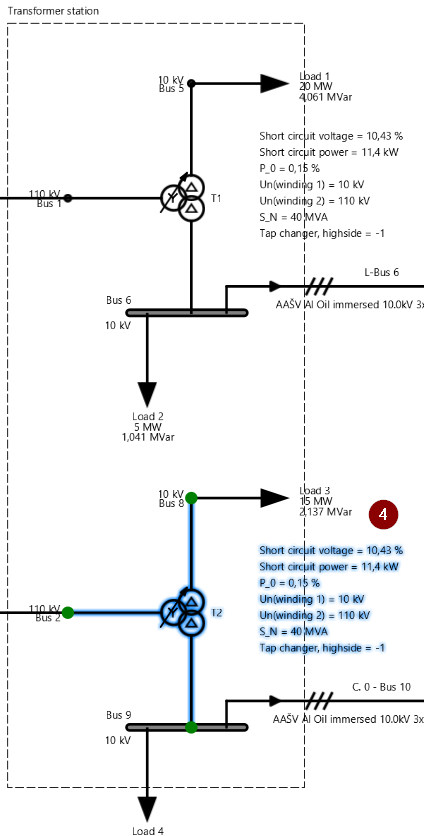

This also works with showed properties:

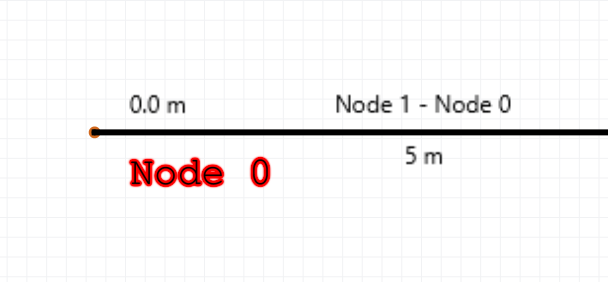

Local text position and font changing - the text is highlighted in red

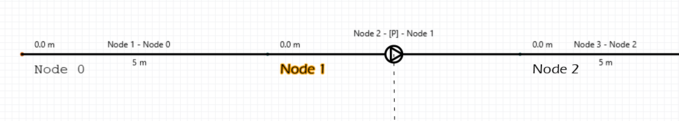

Global text position and font changing - the text is highlighted in orange
