10.1. Adding a "Protection unit" to elements


At this newest EA-PSM release, protection units are divided into categories and can be added just like any other elements from the elements panel.

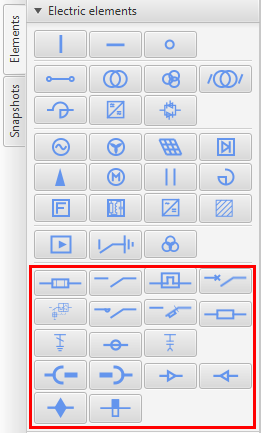

Protection elements are located at the botom of electric elements panel:

Protection unit can be added two ways:

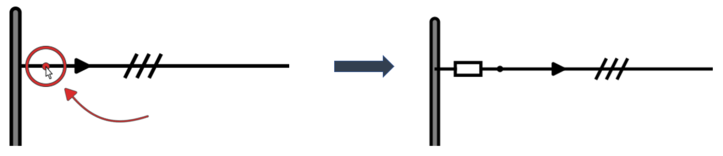

1. ) Selecting protection device at elements panel and Clicking on the beginning or the end of the line, depending on where the element should be placed:

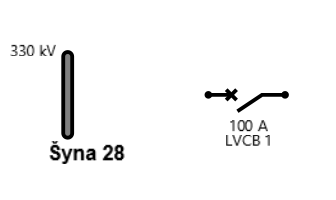

2. ) Adding elements in series: firstly selecting protection device from elements panel and adding it on the scheme like any other element:


           Note: If the user needs to copy the protector of the breaker, it is possible simply click on the breaker you want to copy and drag it over to another breaker.
